Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting CS Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL CS-(*)S (Body: 316

Brand Name : condor

Model Number : MODEL CS-(*)S (Body: 316 Stainless Steel)

Certification : KEMA 01ATEX2124X and IECEx DEK 11.0017

Place of Origin : Mauritius

MOQ : 1pcs

Price : EURO/USD/HKD

Payment Terms : T/T

Delivery Time : 2-4 weeks

Packaging Details : carton

Ambient Temperature Range : – 60°C…+ 90°C

Housing Material : Stainless steel 316

Explosion Proof Rating : II 2G Ex d IIC T4 or T3

Certifications : KEMA 01ATEX2124X and IECEx DEK 11.0017

Voltage : 110/240

Wattage : 250-25 Watt

Features : Can be used for 110/240 VAC/DC

Protection Level : II 2D Ex tD A21 IP66 T 135°C or T200 °C

Power Source : Electric

color : black

Contact Now

Description

1 Application

Direct-heaters for Hazardous locations, designed for direct mounting onto e.g. manifolds etc.

  • Anticondensation
  • Freeze protection
  • Temperature maintenance

2 Features and Advantages

  • Self-limiting heating elements
  • Small dimensions
  • No moving parts, no maintenance required, therefore long lifetime
  • Suitable for T4 and T3 classifications
  • Can be used for 110/240 VAC/DC

3 Remarks

  • All Cameo Heaters are designed around self-limiting heating elements. These semi-conductor elements are saving power consumption. Our Cameo Direct-heaters are designed to heat the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
  • When required in other applications, e.g. analyzers, it is normal practice to use our Direct-heaters in combination with our Fix-Therm96 thermostats (range from 10°C up to 135°C) or our FixTherm Inline Thermostat(range from 10°C up to 60°C).

4 Range

CS-1S T3 ca. 115°C Surface temperature* 250-25 Watt
CS-2S T4 ca. 105°C Surface temperature* 250-25 Watt
CS-3S T4 ca. 90°C Surface temperature* 250-25 Watt
CS-4S T4 ca. 70°C Surface temperature* 250-25 Watt

* these temperatures are measured at 20 °C ambient temperature.

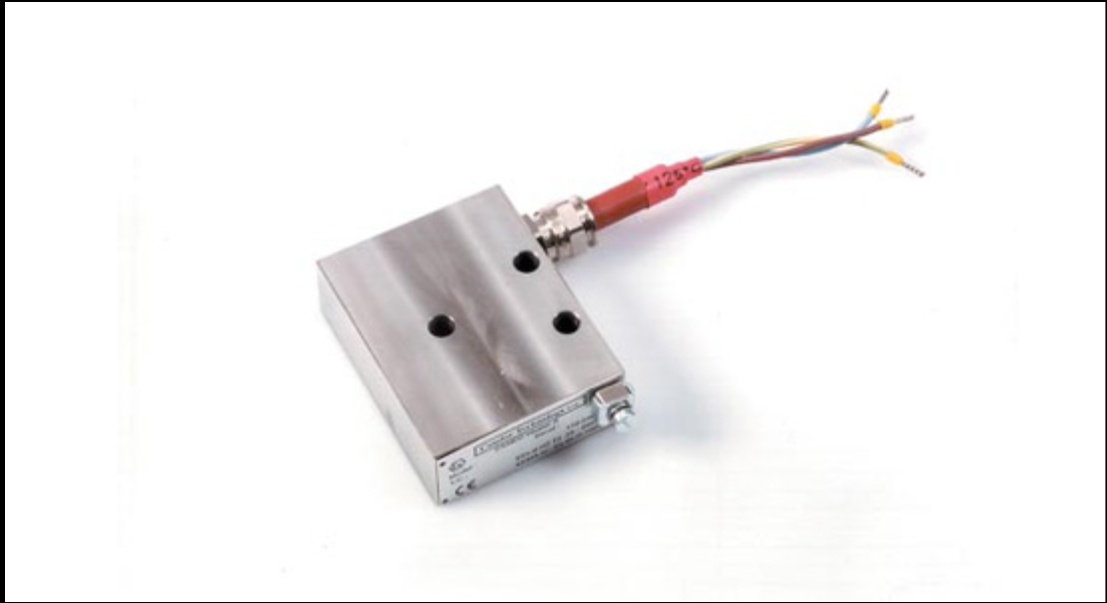

Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting CS Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL CS-(*)S (Body: 316

5 Technical data

Power 250-25 Watt
Electrical cable 3 x 1 sqmm
Material cable braided silicone, optional: non-braided cable
Standard length ca. 1 mtr. Other lengths optional
Overall dimensions 85x65x28 mm (LxWxH)
Weight ca. 900 g.
Material Stainless steel 316
EX protection class II 2G Ex d IIC T4 or T3

II 2D Ex tD A21 IP66 T 135°C or T200 °C
ATEX Certification KEMA 01ATEX2124X and IECEx DEK 11.0017
IP degree IP 66
Voltage AC/DC 110/240
Ambient temp. range – 60°C….+ 90°C
